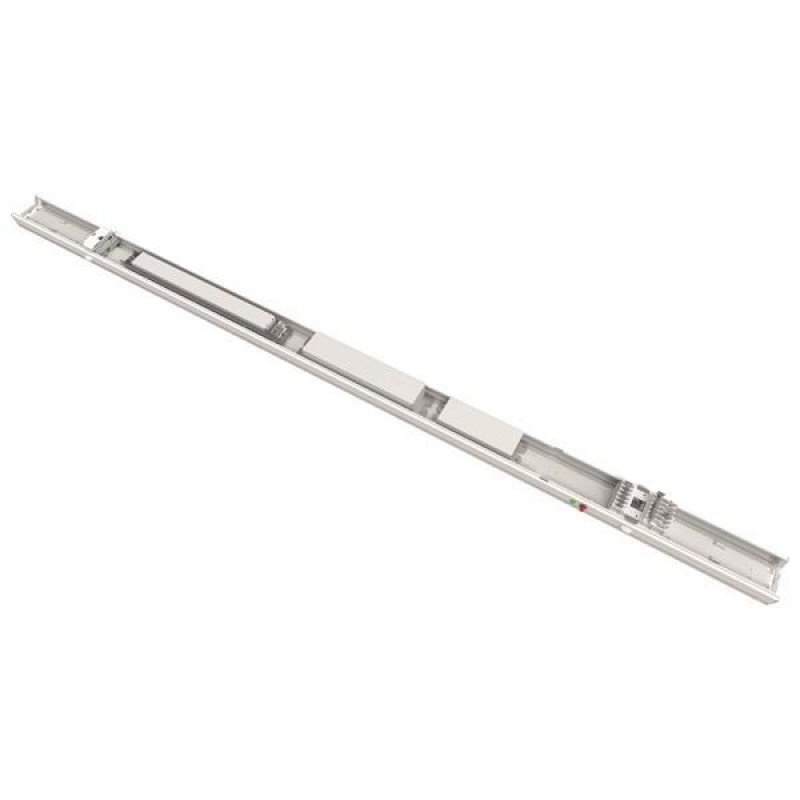

LED MODULE DALI WITH EMERGENCY LIGHTING 1410Χ65Χ36 50W (EM10W) 180Lm/W 4000K 145-58171

Name: LED MODULE DALI WITH EMERGENCY LIGHTING 1410Χ65Χ36 50W (EM10W) 180Lm/W 4000K 145-58171
SKU: 145-58171
Availability: OutOfStock

Неналично

0.00€ (0.00лв.)

С включено ДДС

Количество

LED MODULE DALI WITH EMERGENCY LIGHTING 1410Χ65Χ36 50W (EM10W) 180Lm/W 4000K 145-58171

Характеристики
Amperage (A)	Με βάση τις πραγματικές απαιτήσεις Based on actual requirements (100-400mA)
Beam angle	60x90°
CE Mark	Ναι Yes
Certificates	Ναι Yes
Chip Brand	Samsung
Chip Size	2835
Class	Class I
Color Rendering Index CRI (Ra)	>80
Color Temperature (K)	4000K
Connection Type	Κλέμμα Terminal
DIMMABLE	DALI Dimming
Driver Brand	Philips
Energy class	C
Flicker Free	Ναι Yes
Height	36mm
Included Driver	Ναι Yes
Ingress Protection (IP)	IP50
Installation Height	3-15mtr
LED type	SMD2835
Length	1410mm
Life Time (h)	50,000hrs (L90B10) 100,000hrs (L85B20)
Lumen/ Chip	37,1lmWatt
Lumen/ Watt	180lmW
Luminous Flux (lm)	9000lm (Εφεδρικός Emergency 1800lm)
Nominal Power (W)	50W (Εφεδρικός Emergency 10W)
Operating Frequency (Hz)	5060Hz
Operating Temperature °C	-25°C - +45°C
Packaging	Brown Box with Sticker
Packing (pcs)	110
Power Factor (PF)	>0,90
Product Colour	Λευκό White
Product Gross Weight (Kg)	2.5kg
Product Material	Αλουμίνιο & Πλαστικό Aluminium & Plastic
Product Series	PRO
Starting Time (sec)	0,5 sec
Supply Voltage (V)	220-240V
Switching Cycles (ON/ OFF)	15000
Total Chips	280pcs
Watt/ Chip	0,17WChip
Width	65mm
Years of Warranty	5 Χρόνια 5 Years
